Product details
Feature:
In Stock

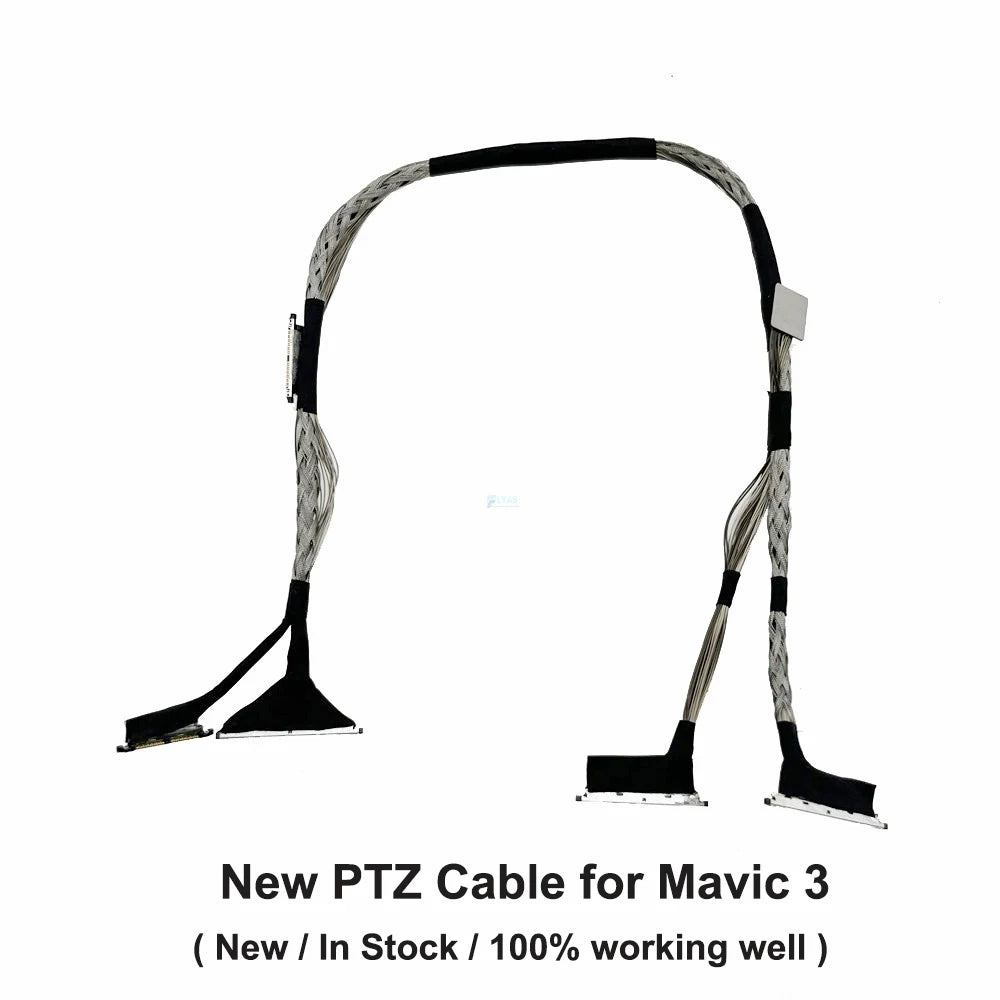

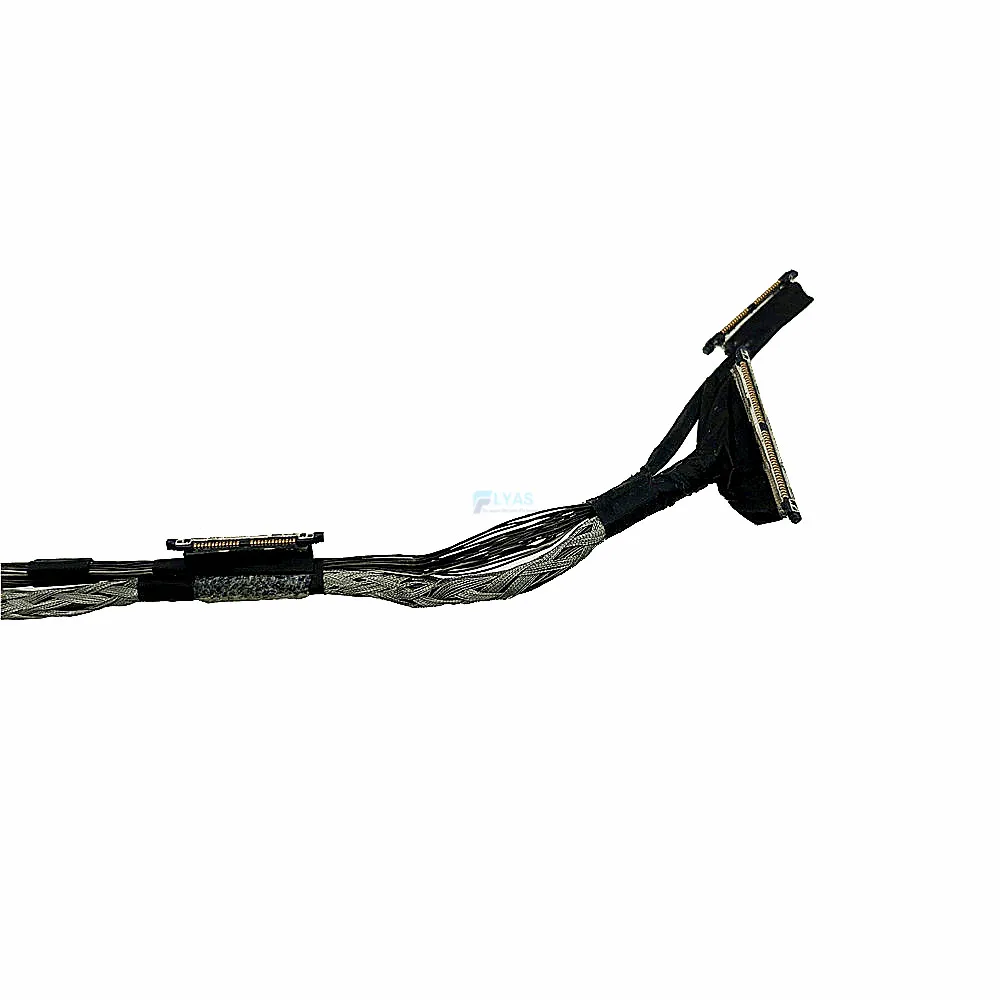

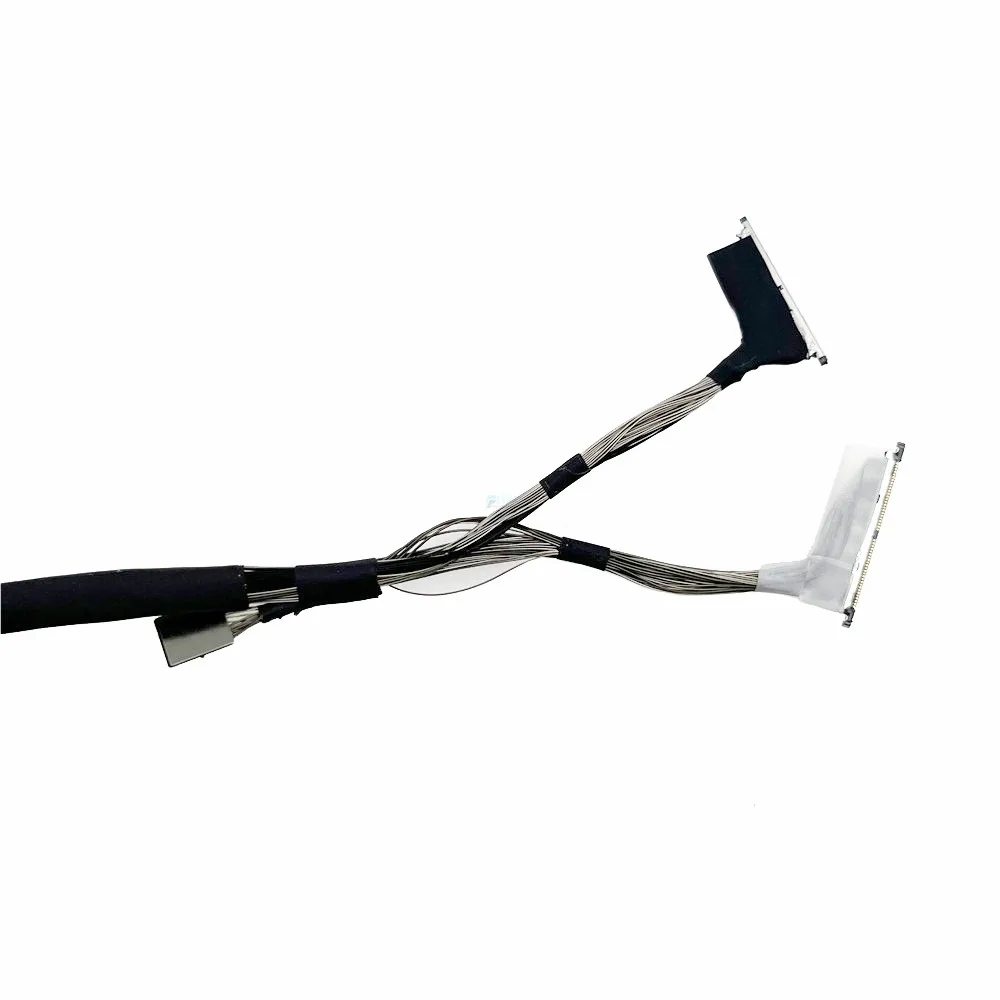

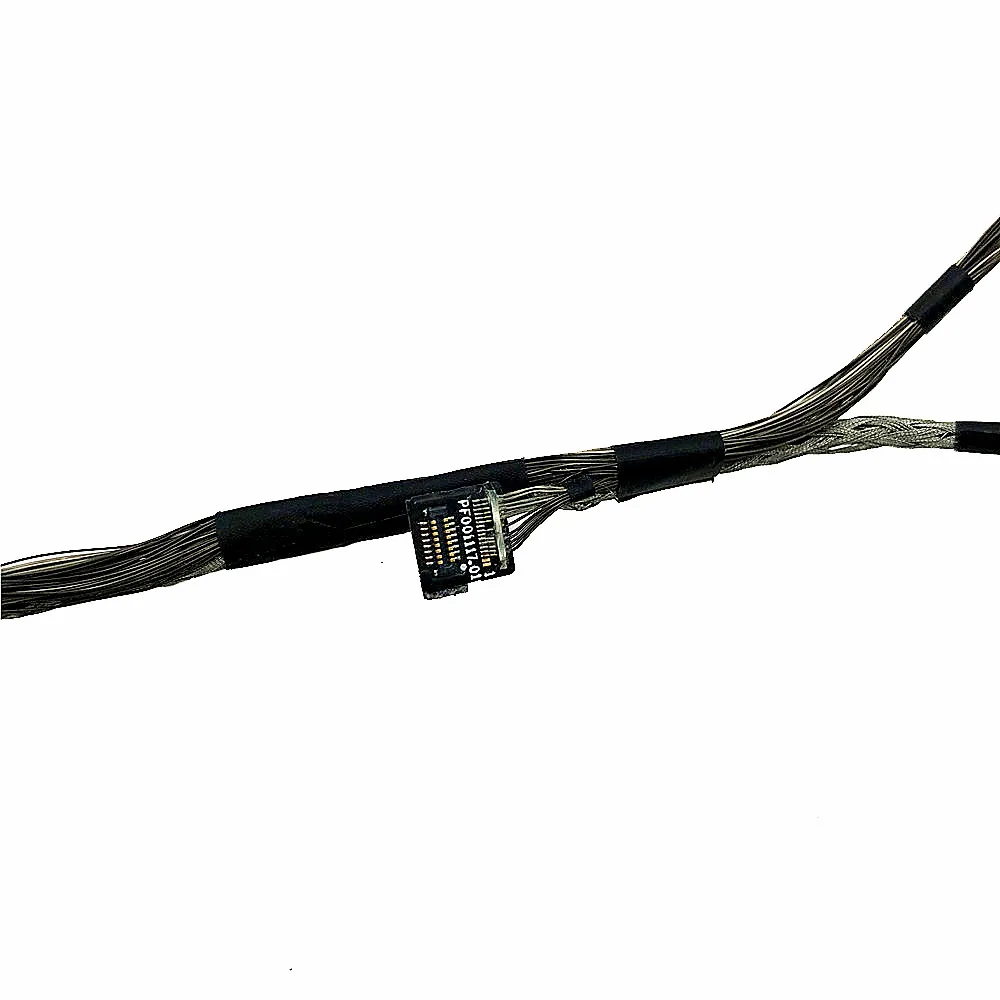

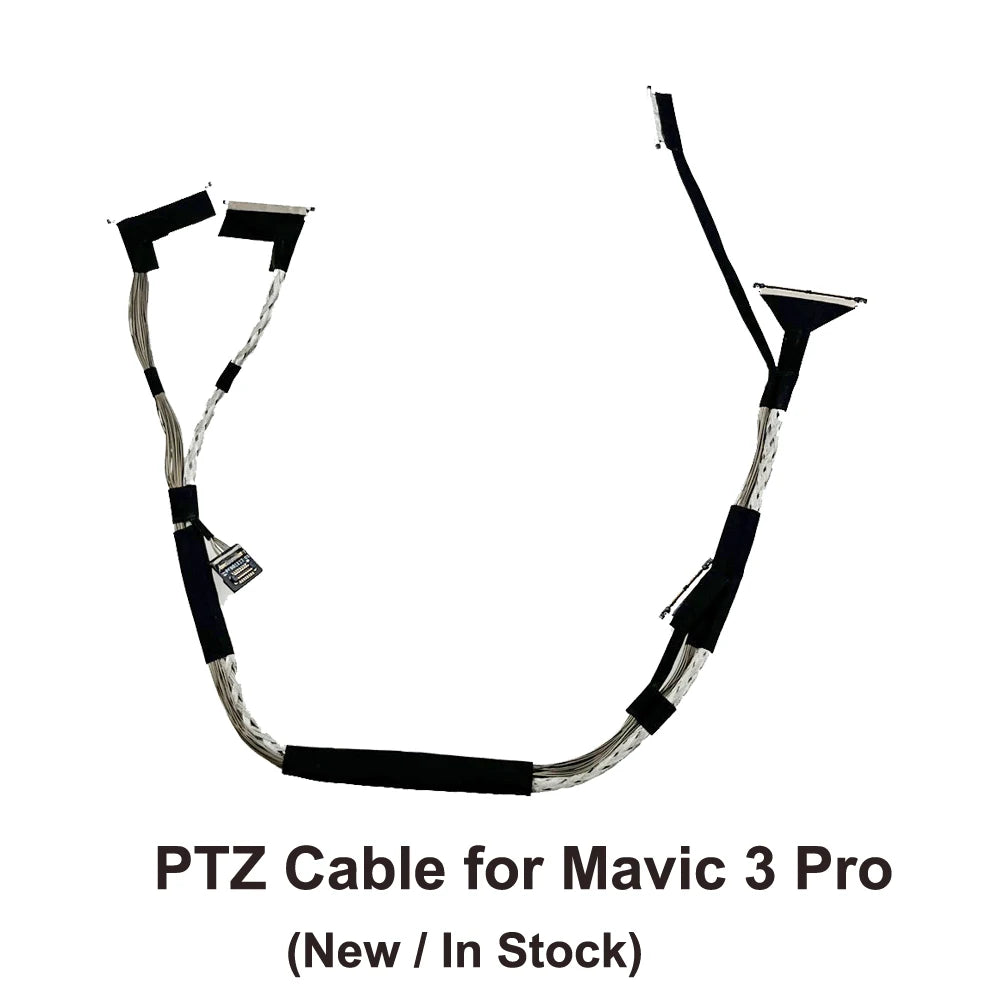

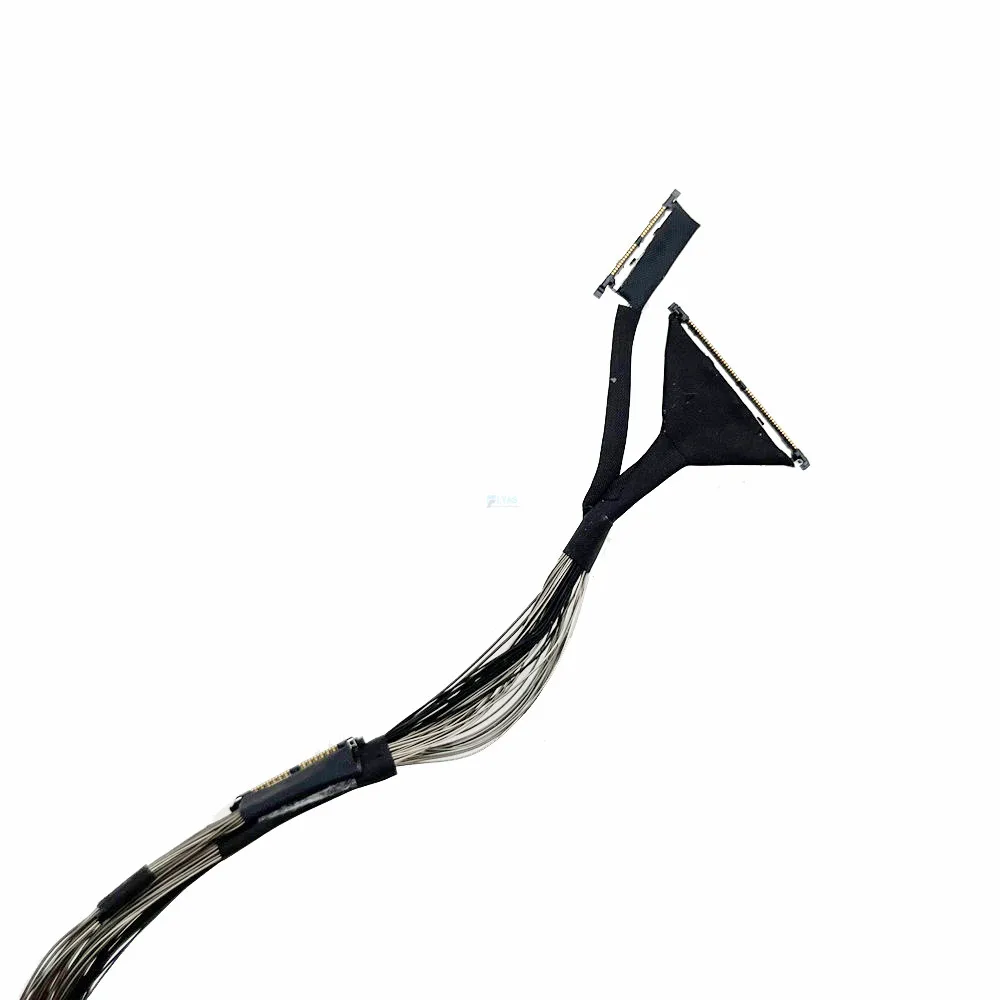

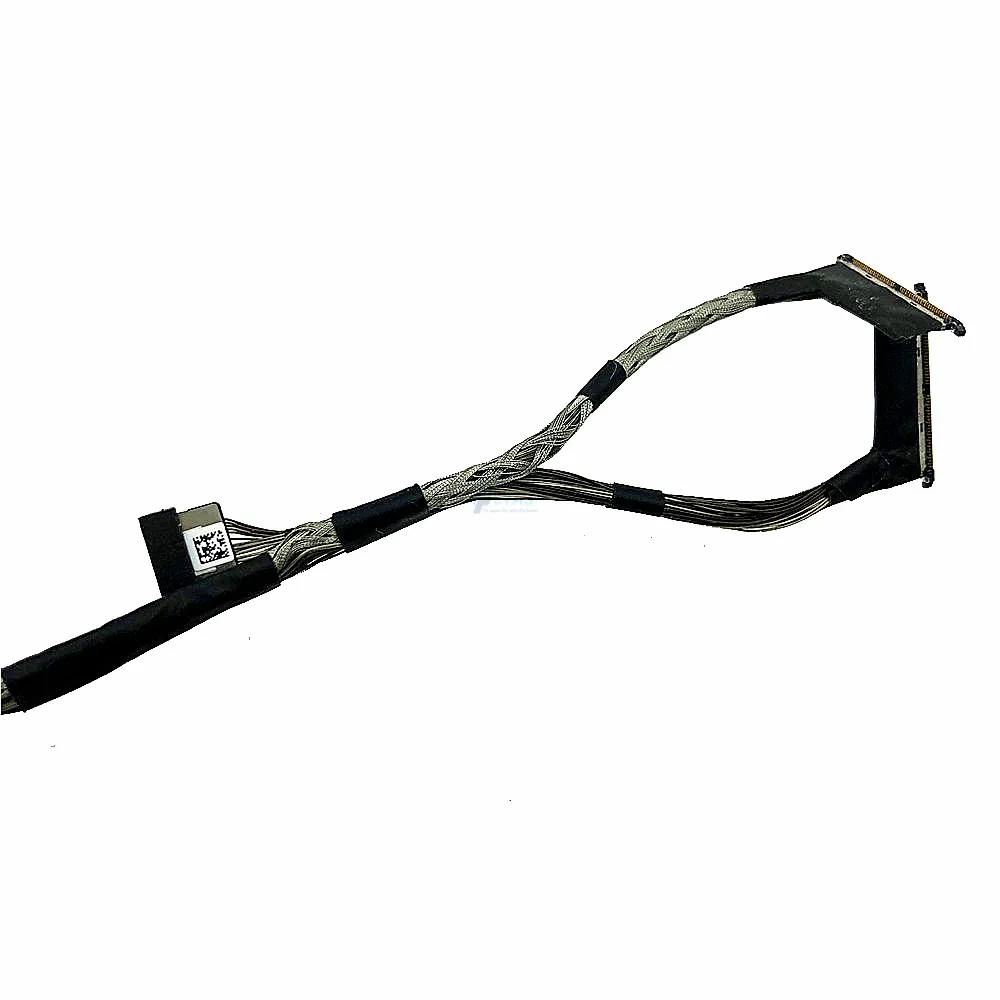

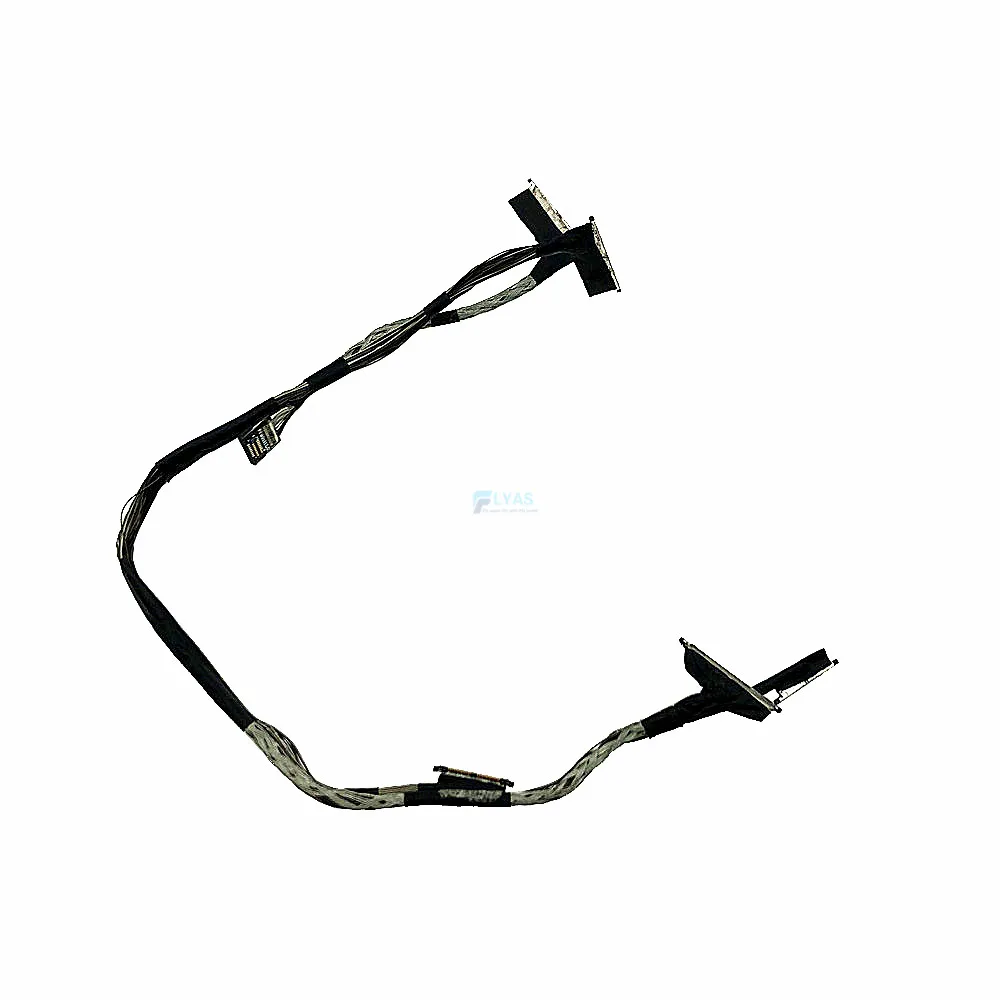

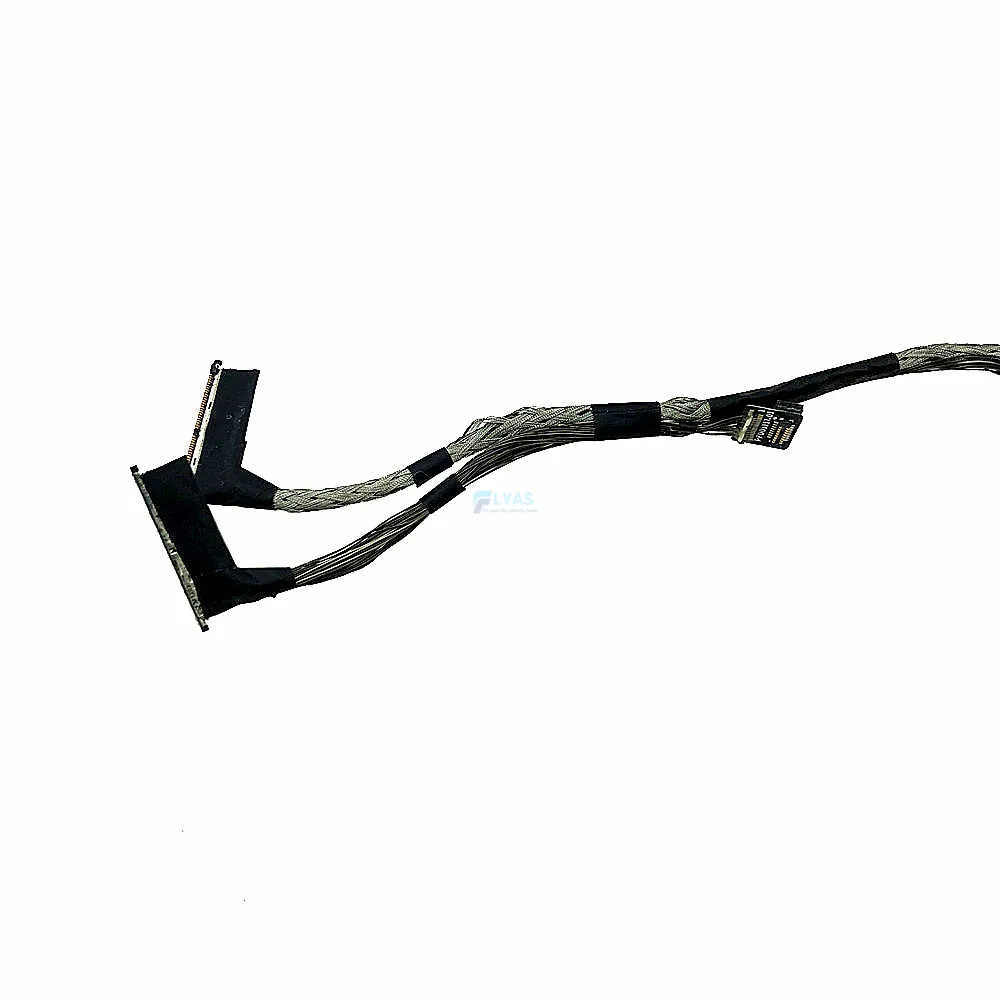

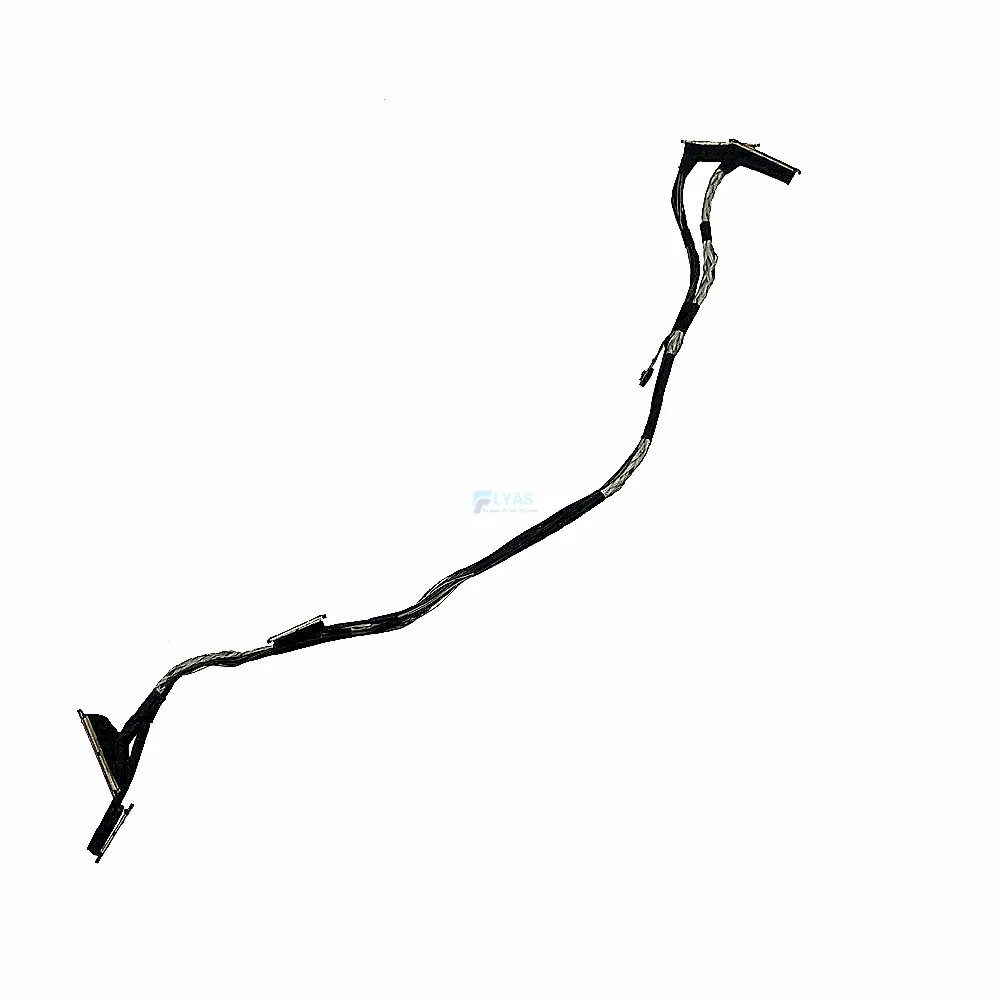

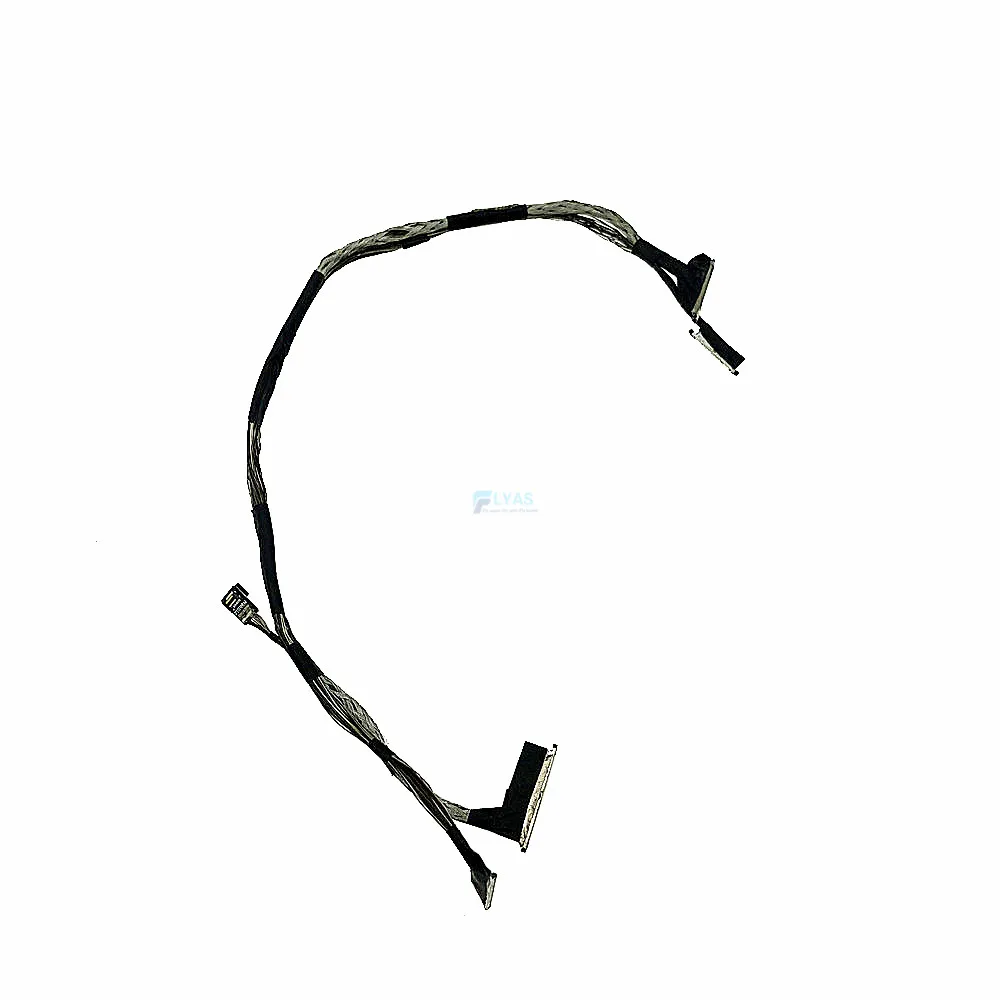

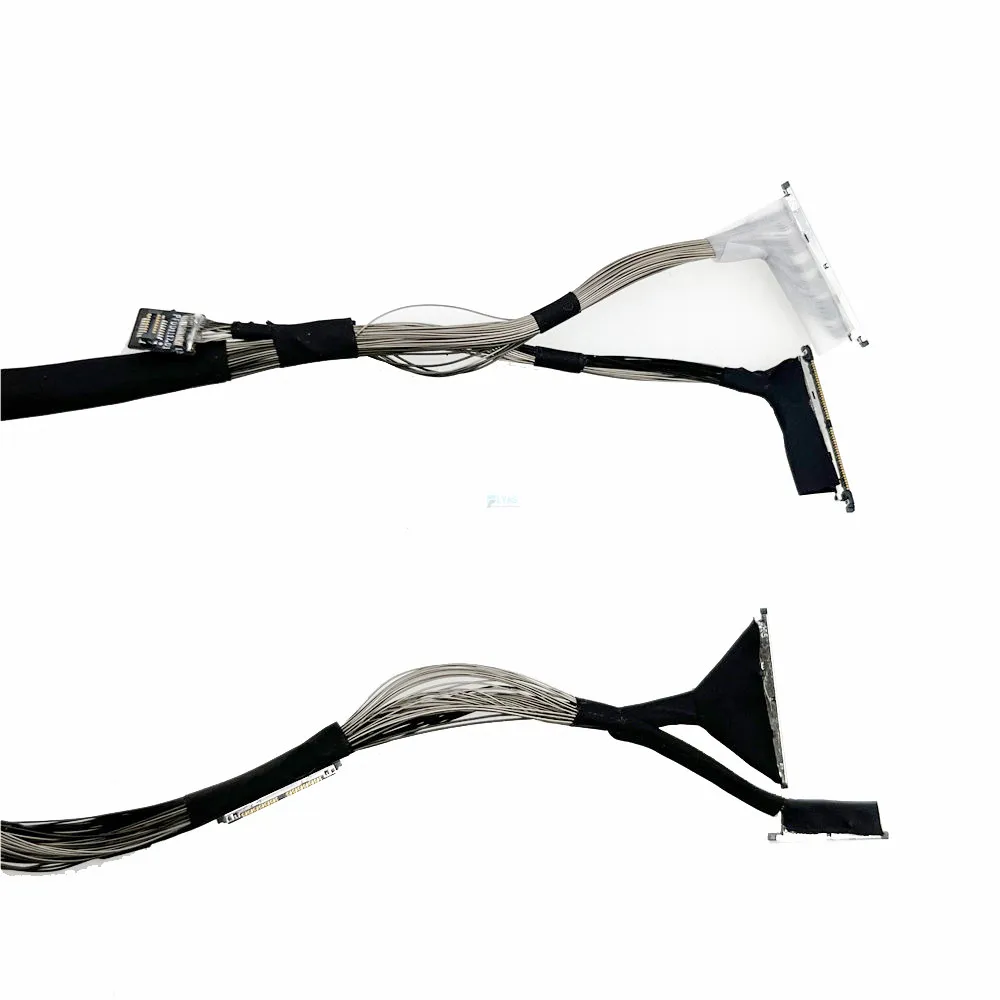

High Quality PTZ Cable

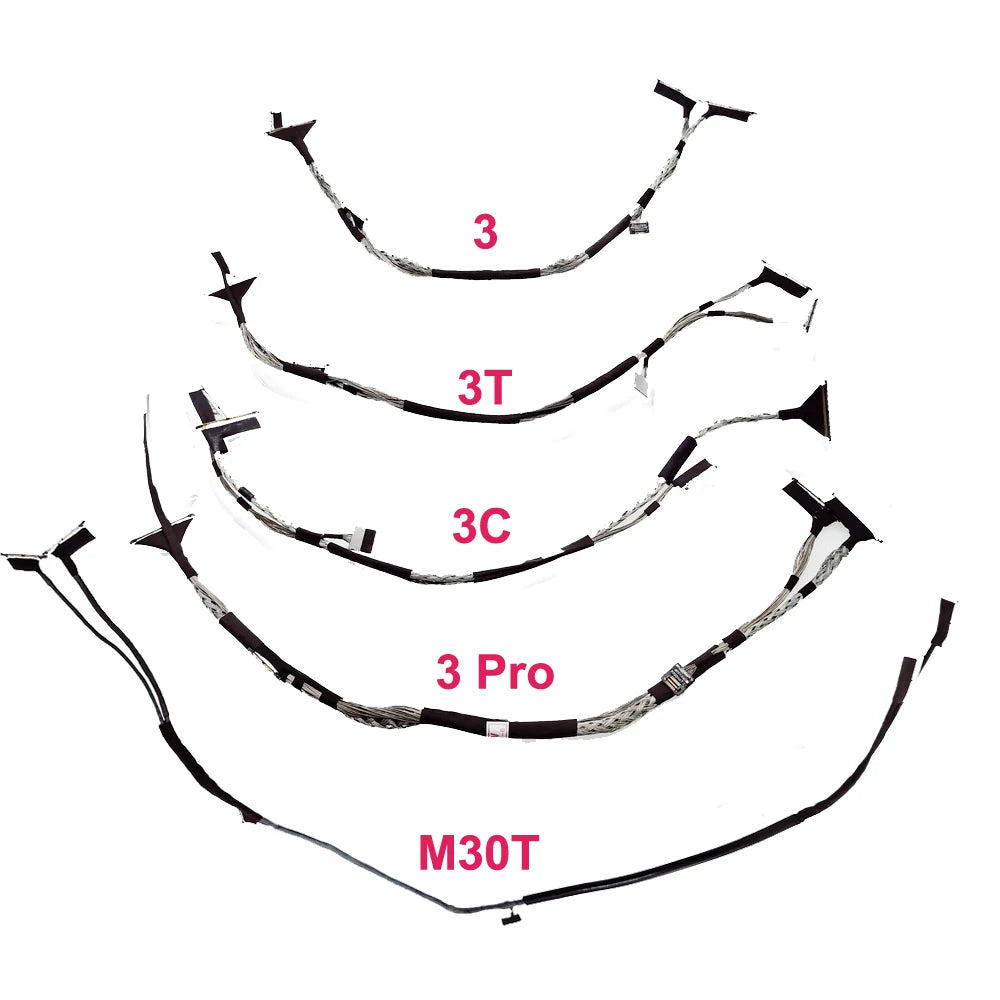

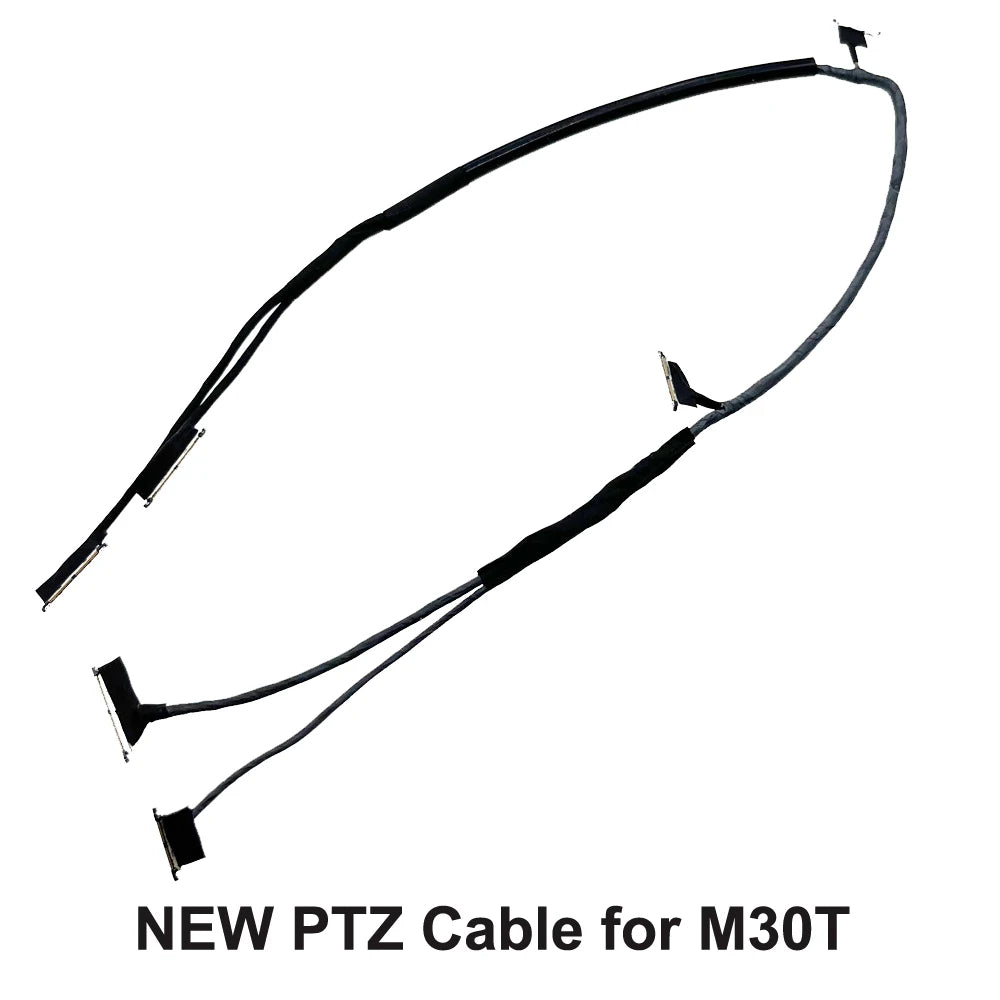

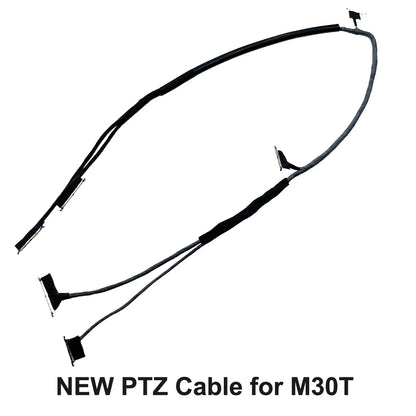

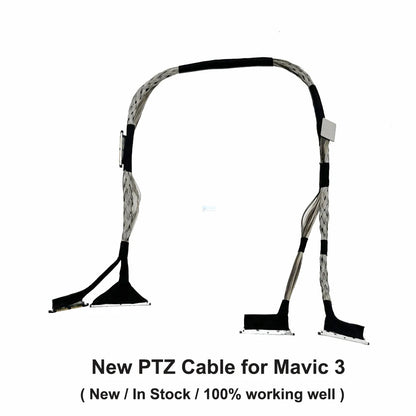

Fit for DJI Mavic 3 and Mavic 3 CINE and Mavic 3 Classic and Mavic 3T and Mavic 3 Pro and M30T
Test before shipping

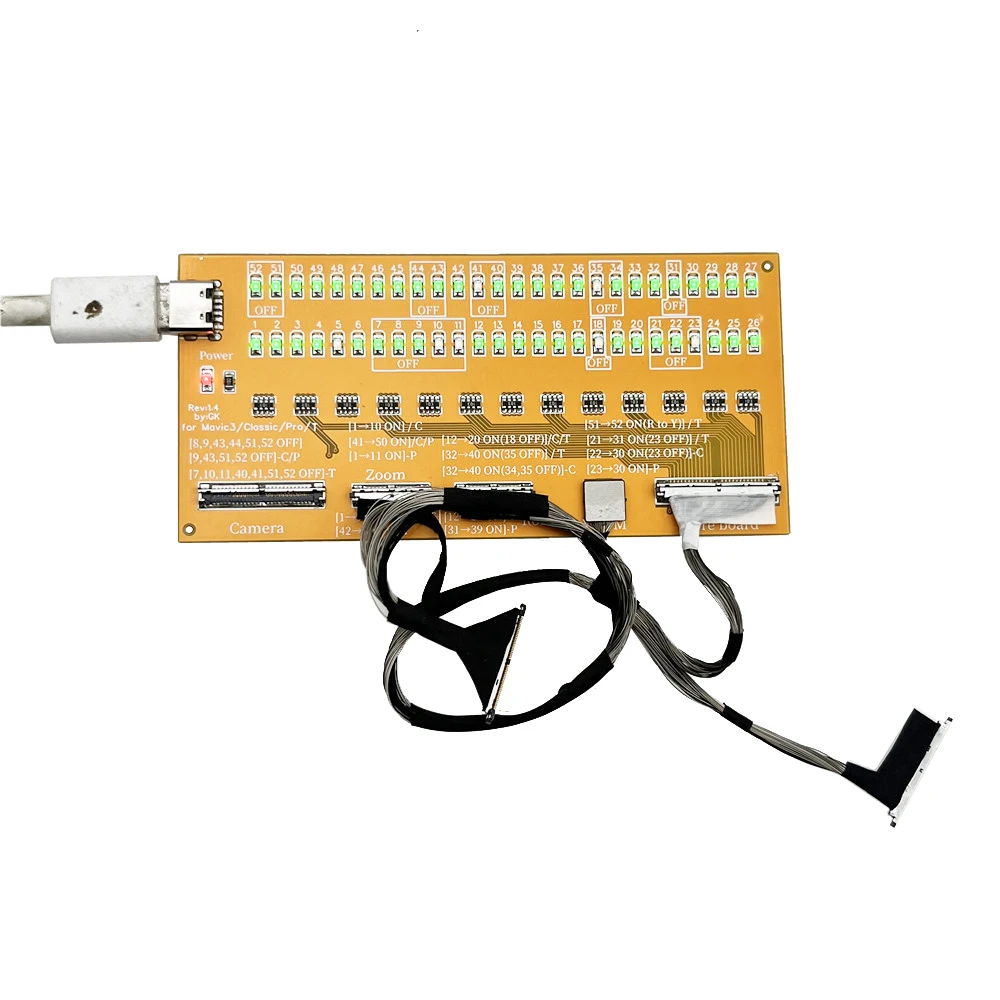

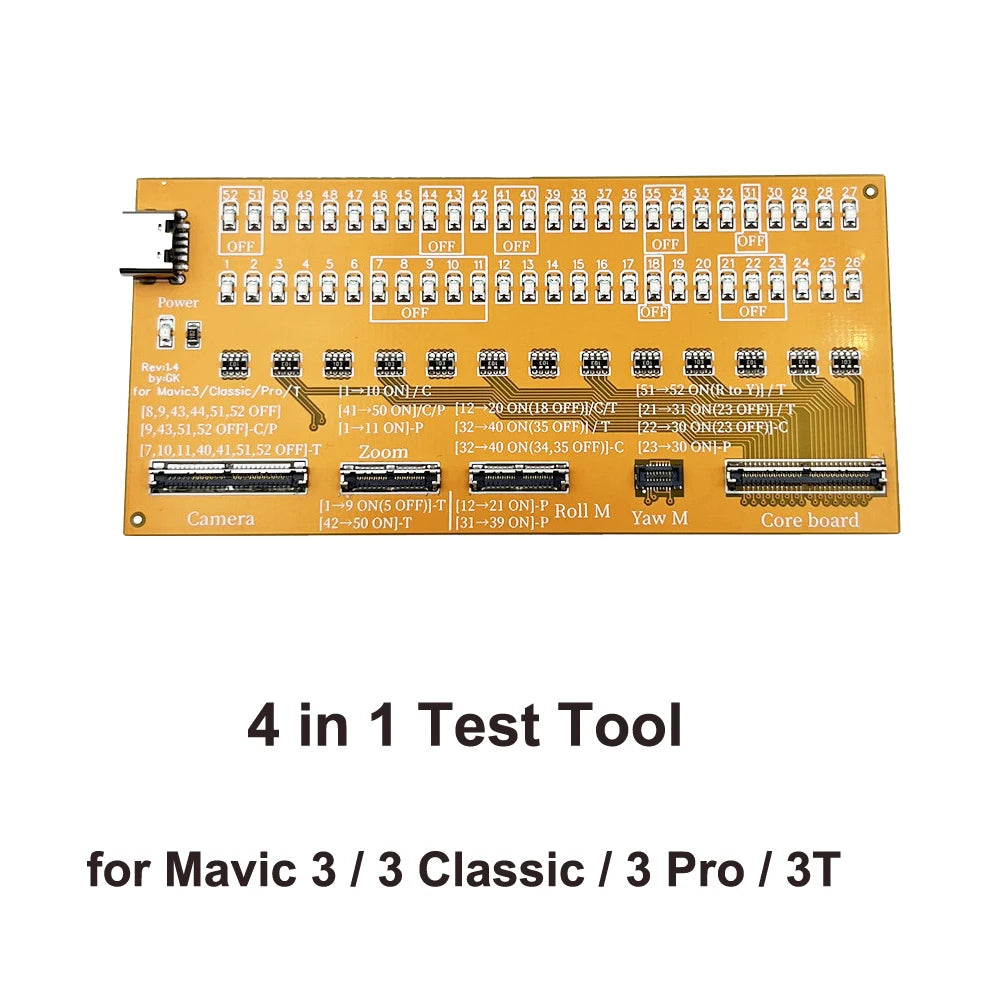

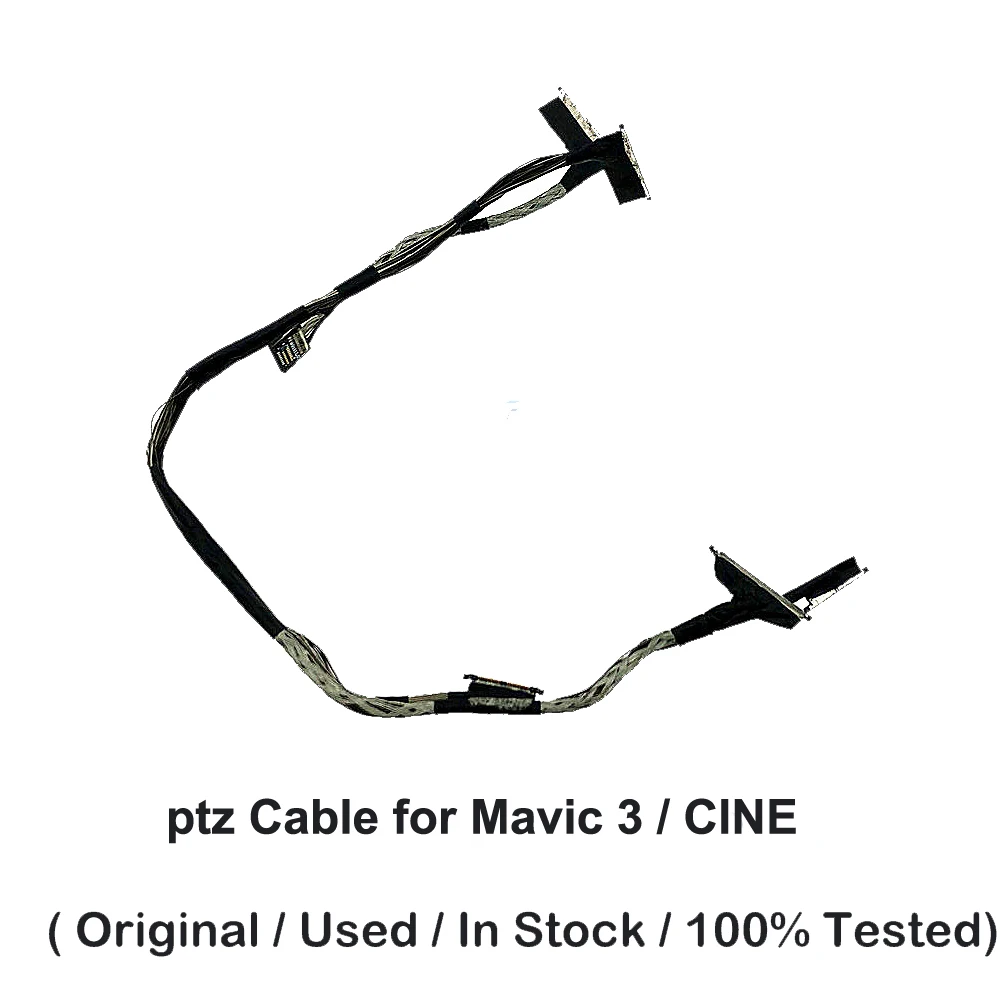

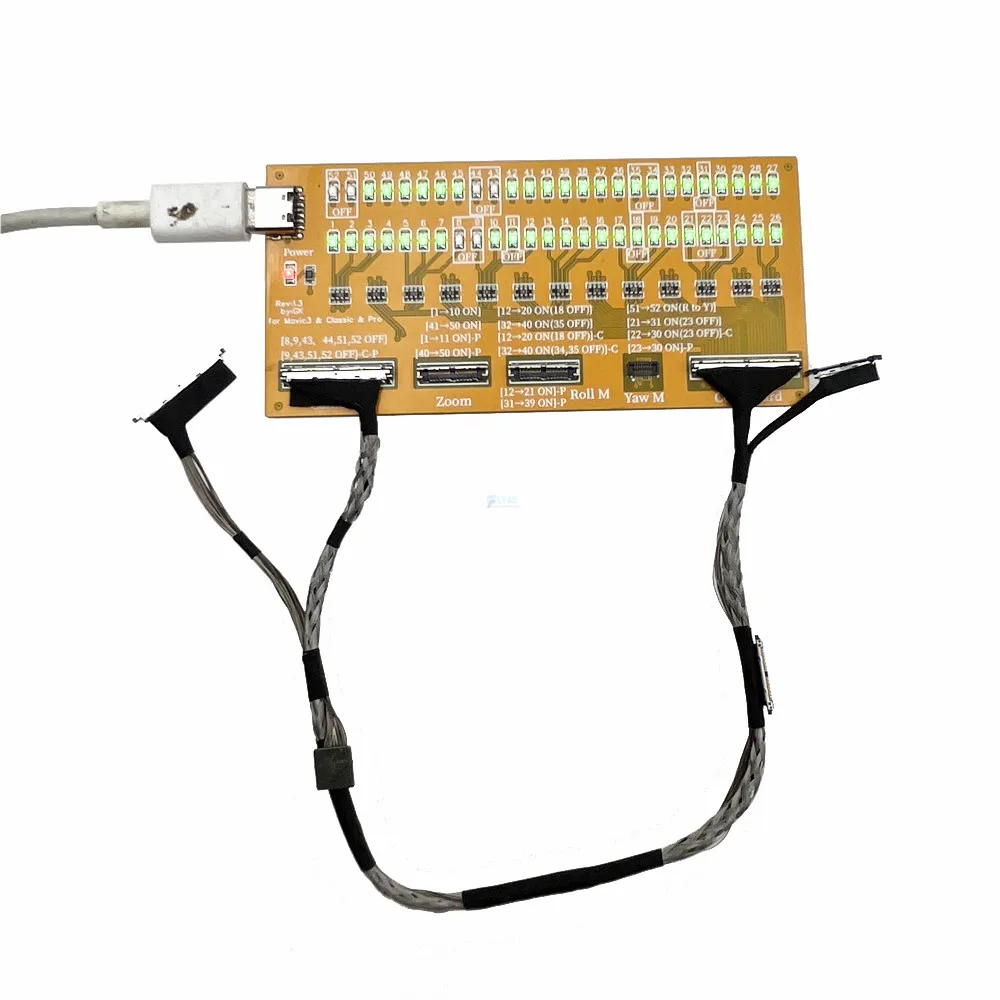

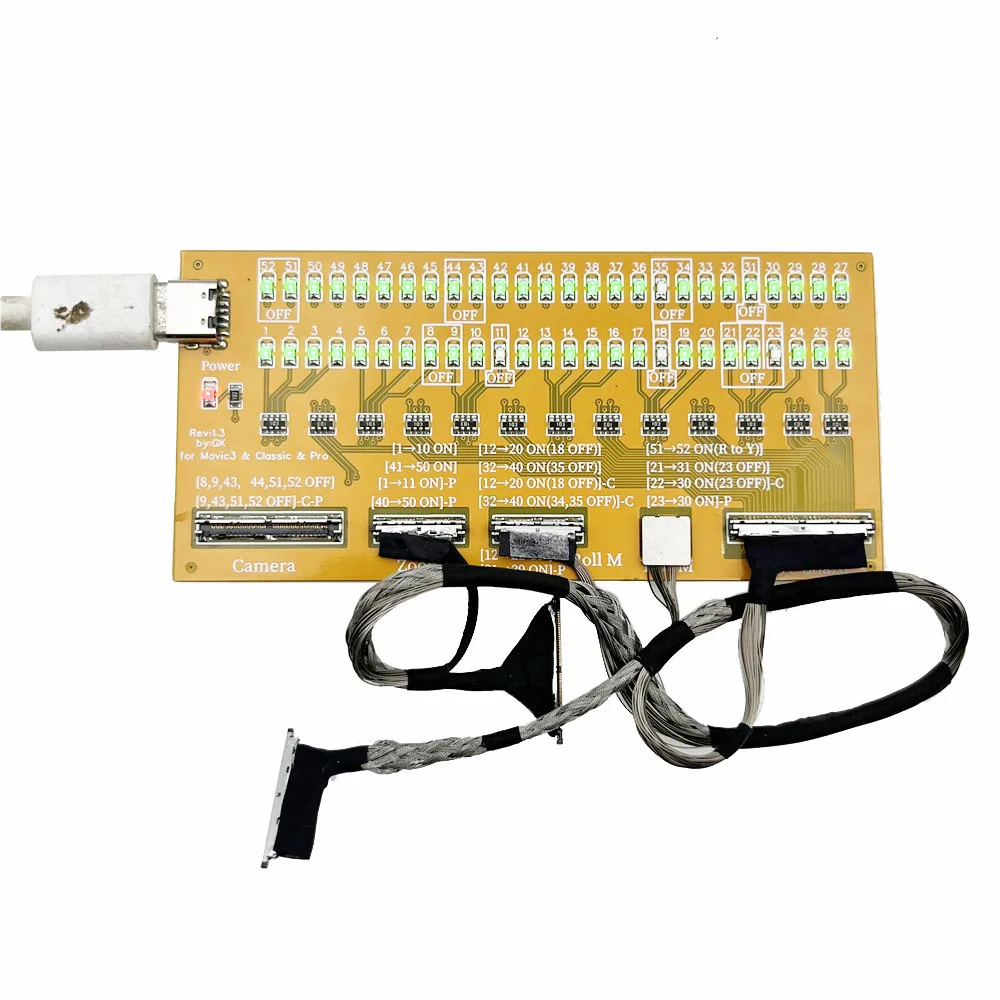

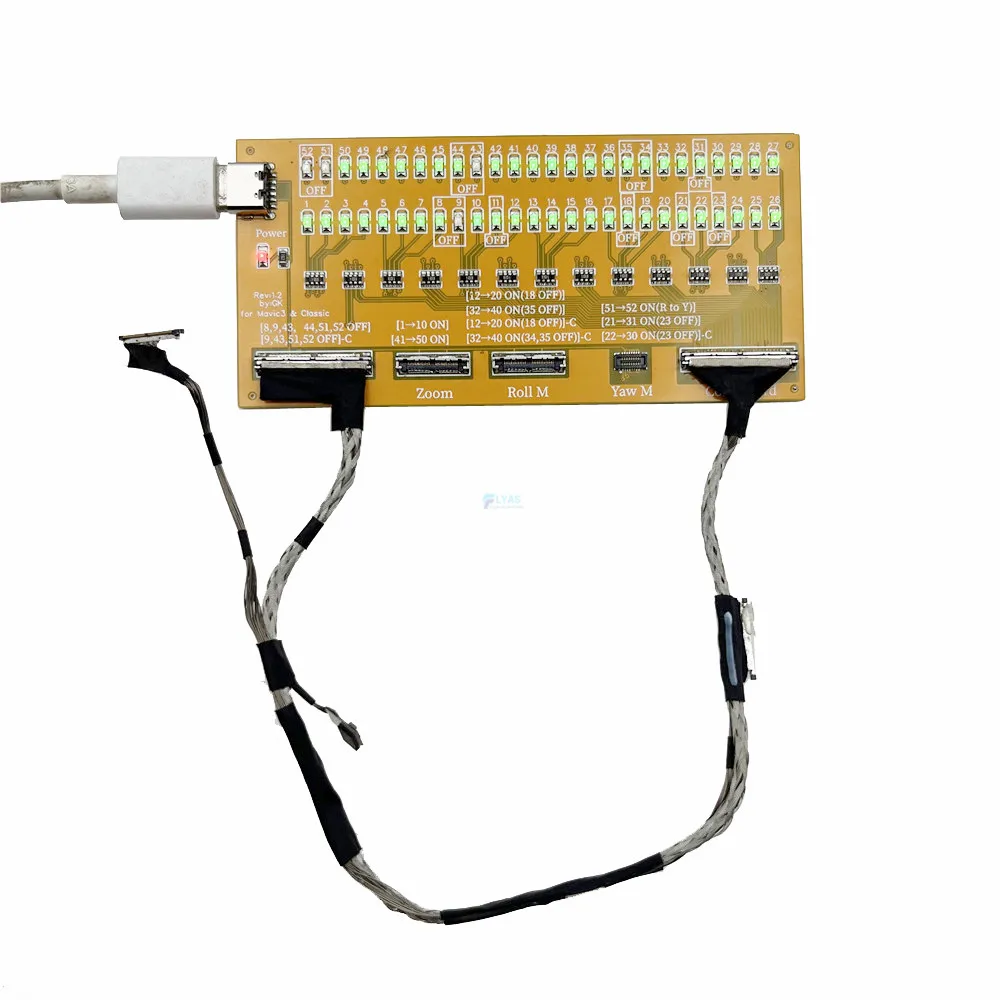

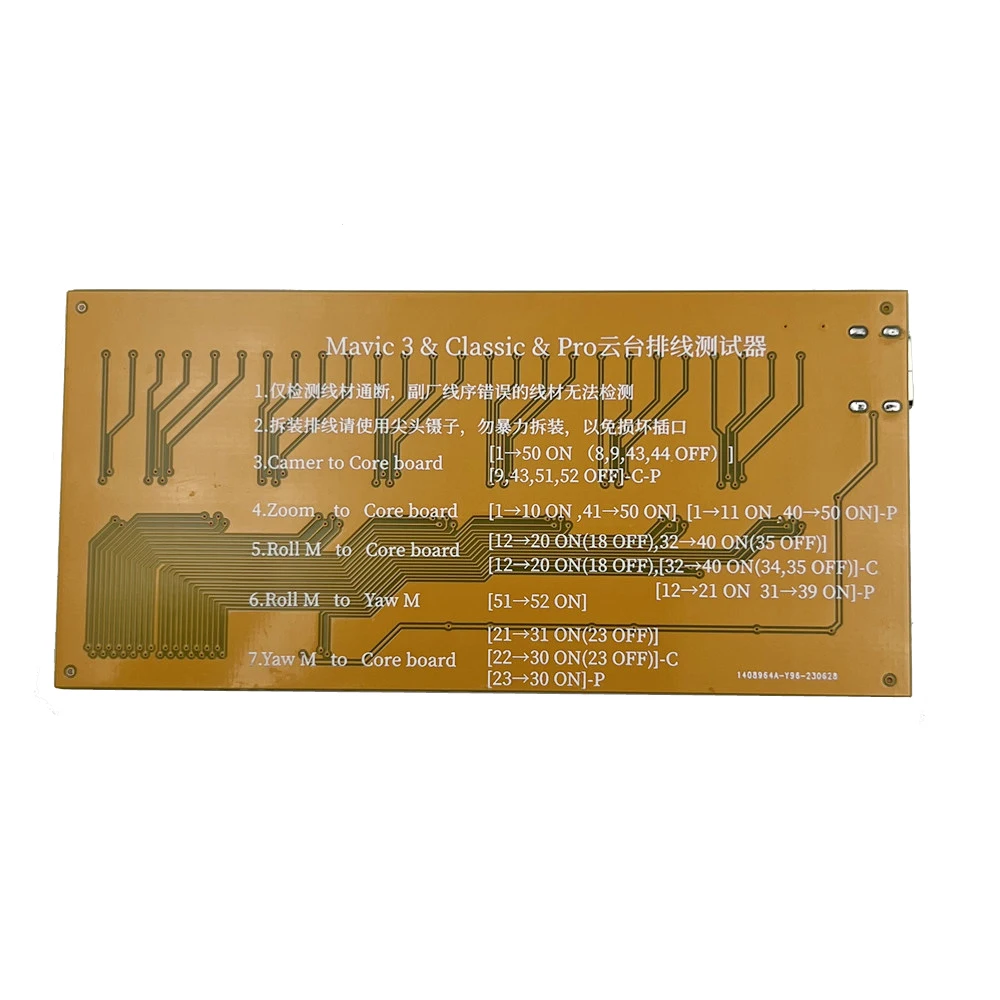

How to use the test tool (Mavic 3 and Mavic 3 CINE ) :
1,Camera to Core Board (1-50 on and 8,9,43,44 off)
2,Zoom to Core Board (1-10 on and 41-50 on , the other off)
3, Roll M to Core Board (12-20 on but 18 off , 32-40 on but 35 off)
4, ROll M to Yaw M (51-52 on)
5 , Yaw M to Core Board (21-31 on but 23 off)

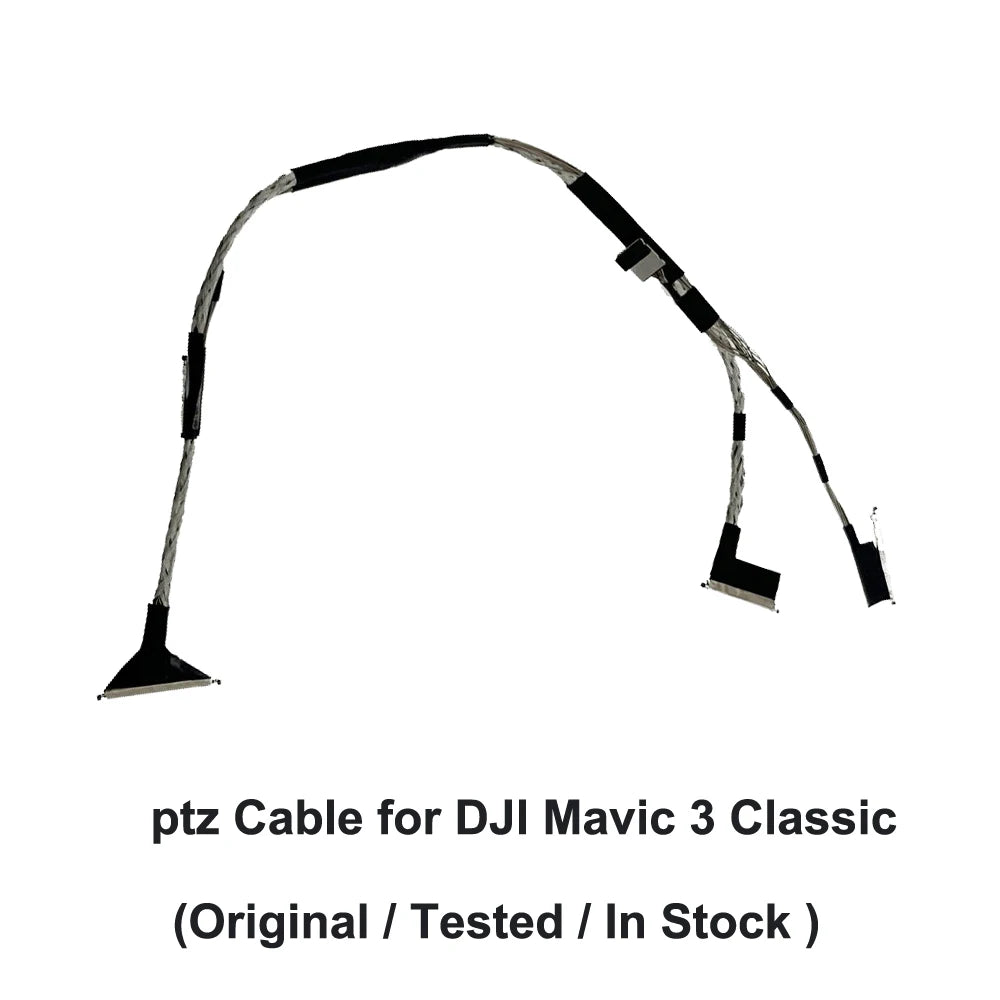

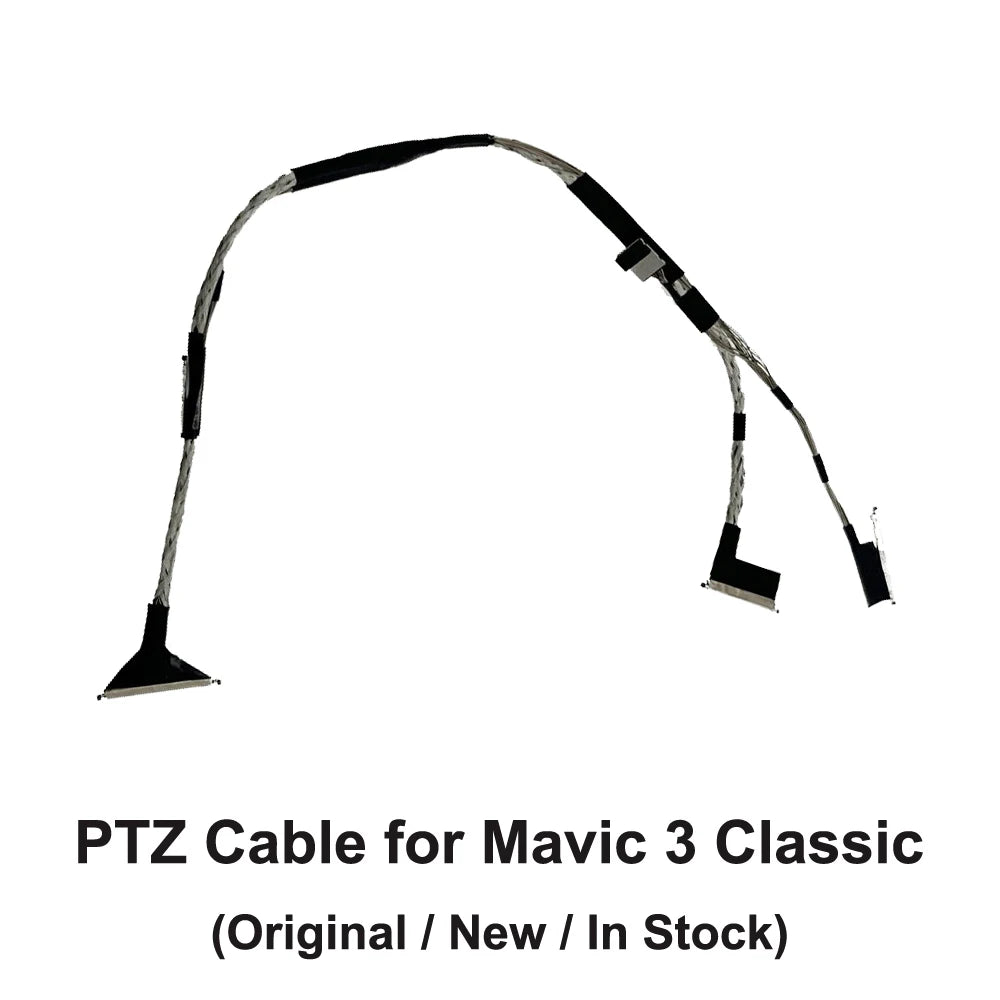

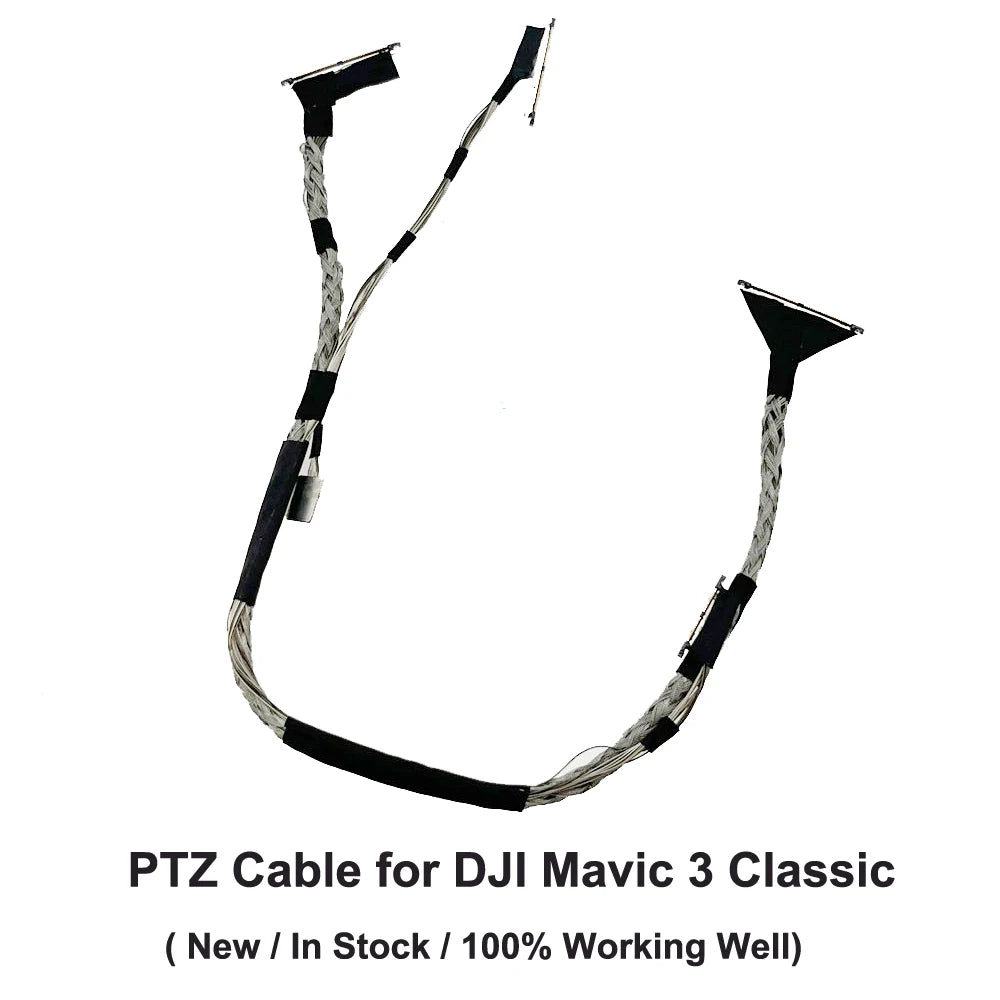

How to use the test tool (Mavic 3 Classic ) :
1,Camera to Core Board (1-50 on and 9,43,44,51,52 off)
2, Roll M to Core Board (12-20 on but 18 off , 32-40 on but 34 , 35 off)
3 , Yaw M to Core Board (22-30 on but 23 off)
How to use the test tool (Mavic 3 Pro / 3 Pro CINE ) :
1,Camera to Core Board (1-50 on and 9,43,44 ,51,52 off)
2,Zoom to Core Board (1-11 on and 40-50 on , the other off)
3, Roll M to Core Board (12-21 on , 31-39 on )
4, ROll M to Yaw M (51-52 on)
5 , Yaw M to Core Board (23-30 on)

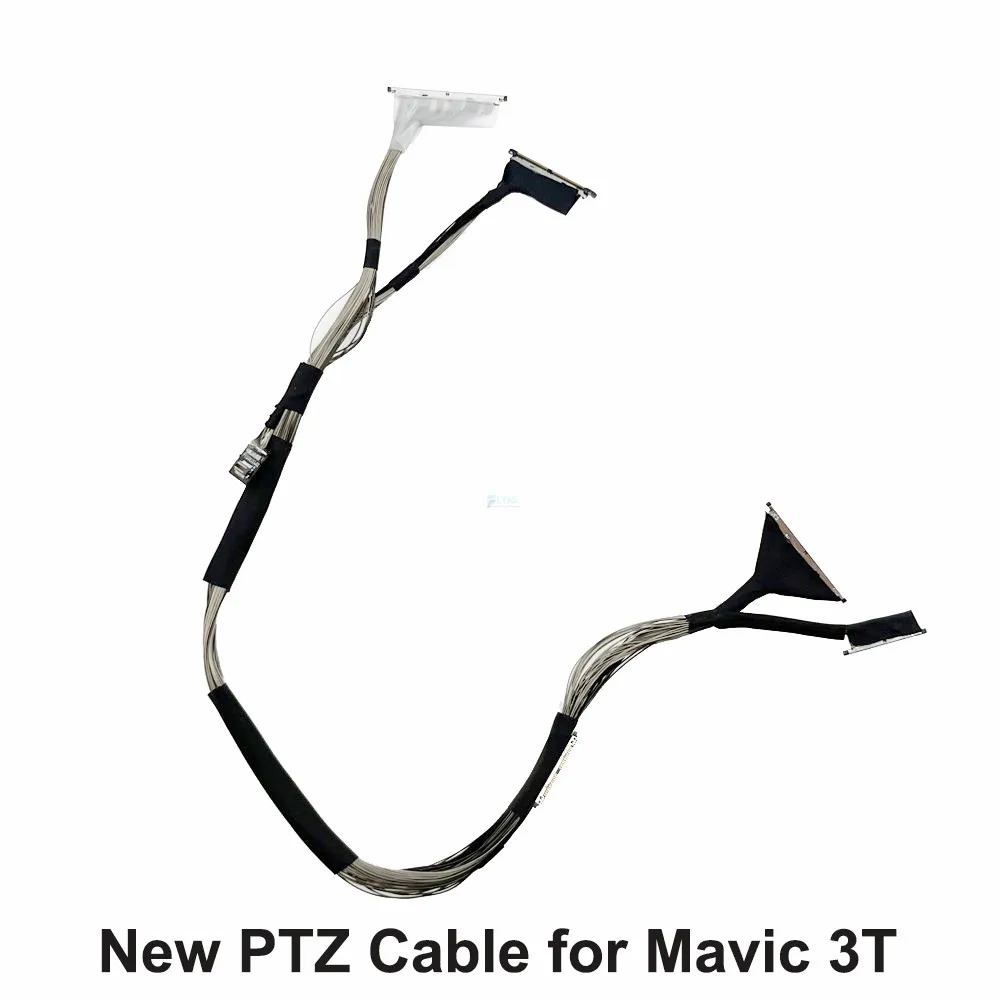

How to use the test tool (Mavic 3T ) :
1,Camera to Core Board (1-50 on and 7,10,11,40,41,51,52 off)
2,Zoom to Core Board (1-9 on (5 off ) and 42-50 on )
3, Roll M to Core Board (12-20 on (18 off), 32-40 on (35 off) )
4, ROll M to Yaw M (51-52 on)
5 , Yaw M to Core Board (21-31 on , 23 off)
Important :
1, only test connection and disconnection of cable
2, Please use tweezer to remove the cable carefully , violent disassembly may destroy the port . Thank you !
Package include:
1pcs Signal Cable or 1pcs Test Tool
