Product details
About Working Mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.

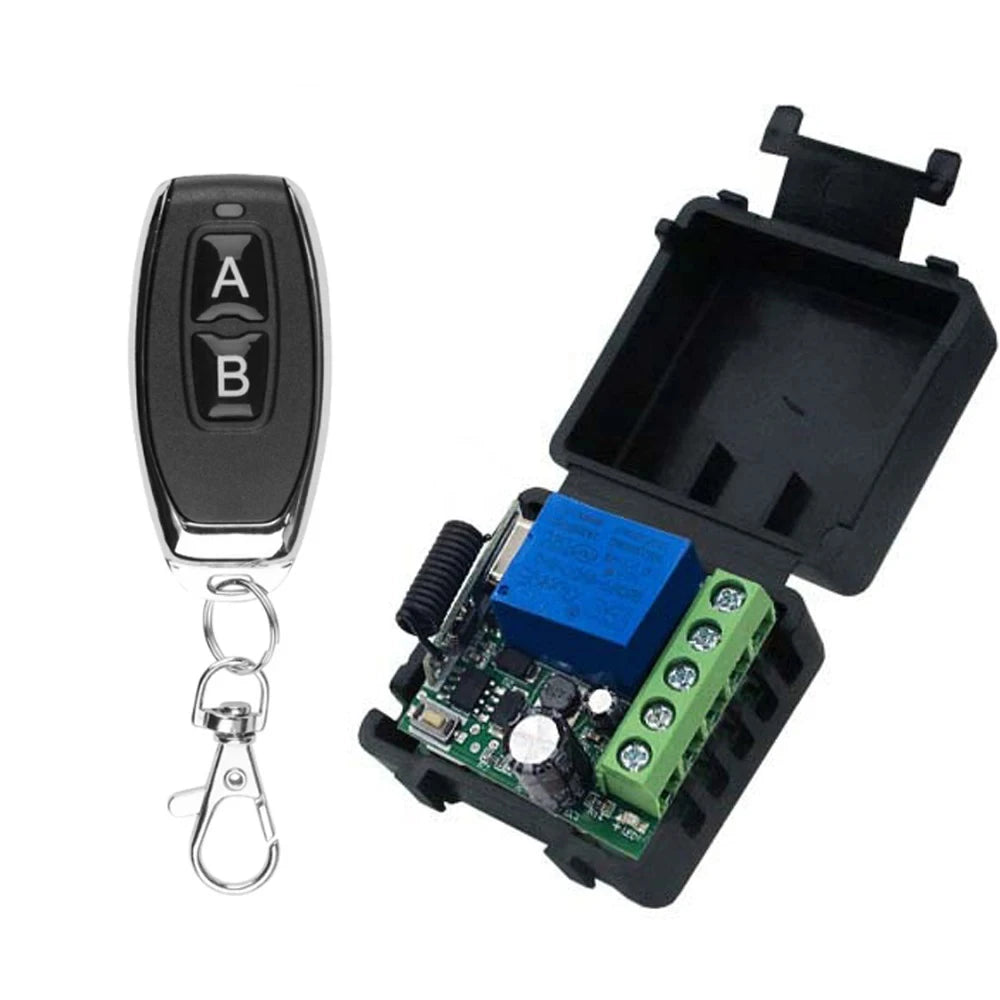

Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s
Specifications:

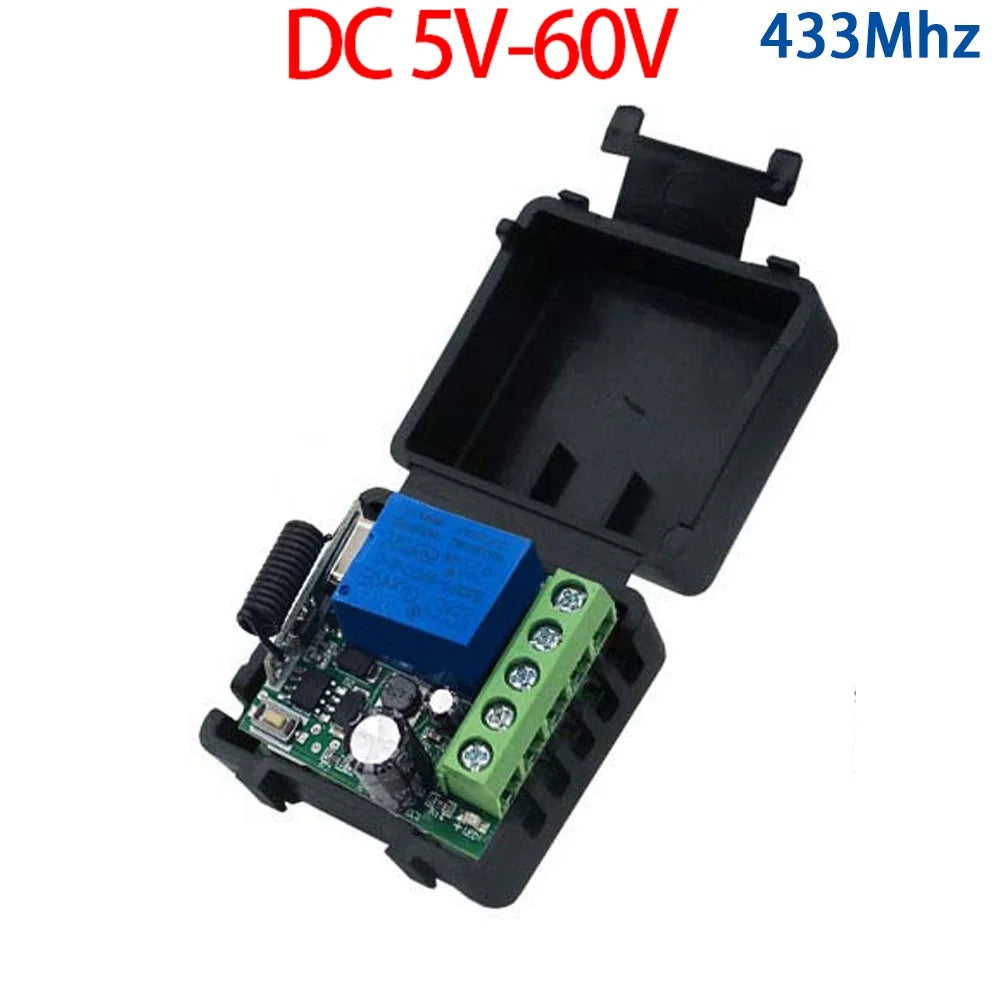

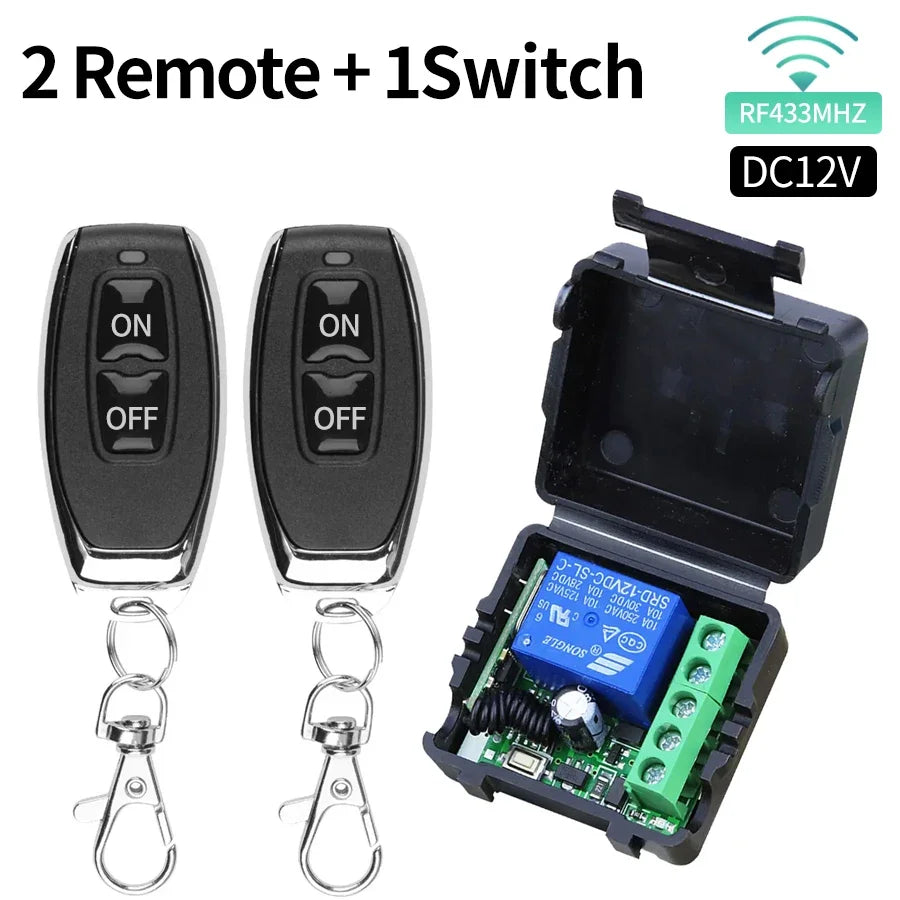

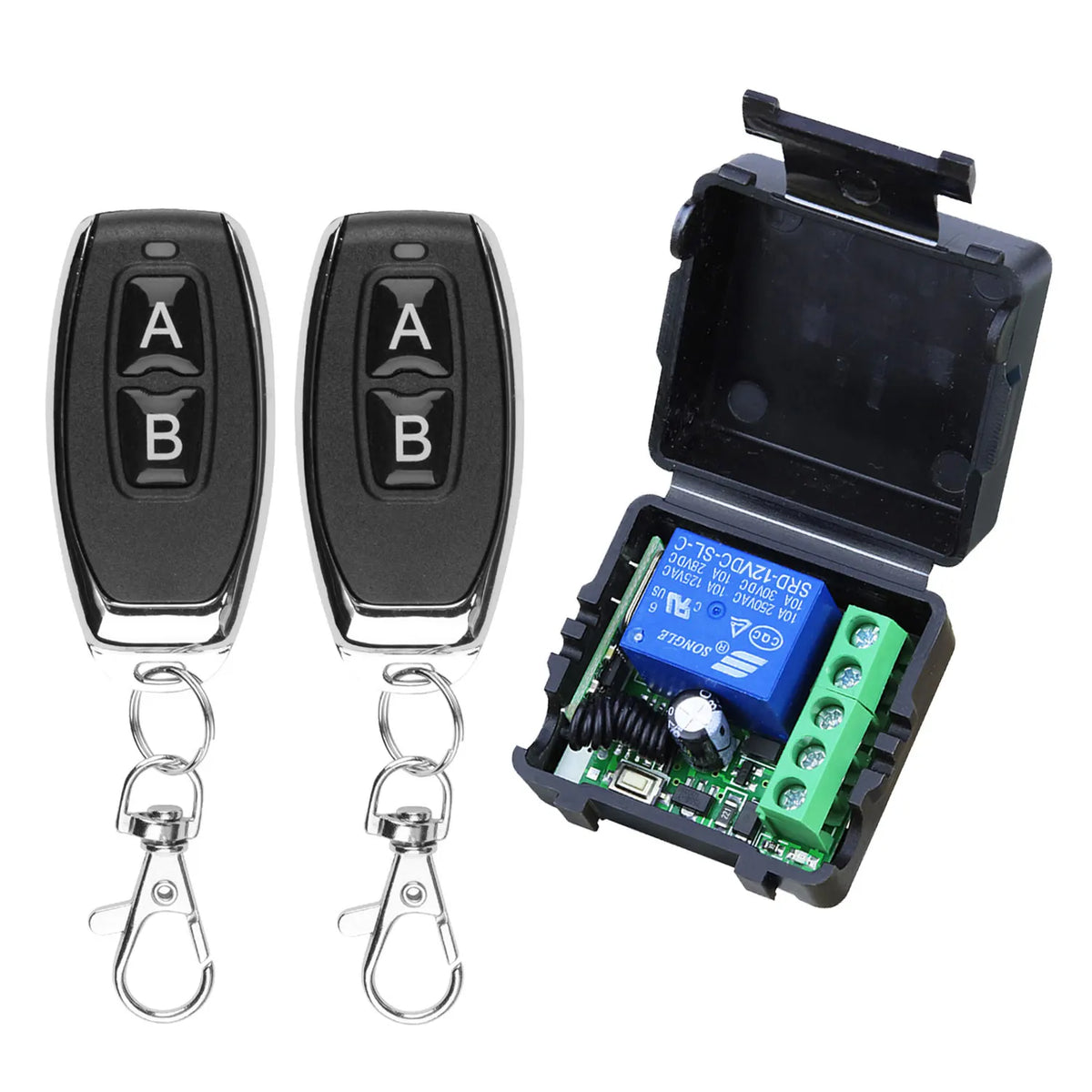

Receiver(switch)
Input voltage: DC 12V
Working current: 10A
Maximum load power: 110W
Frequency: 433Mhz
Support encoding format: EV1527

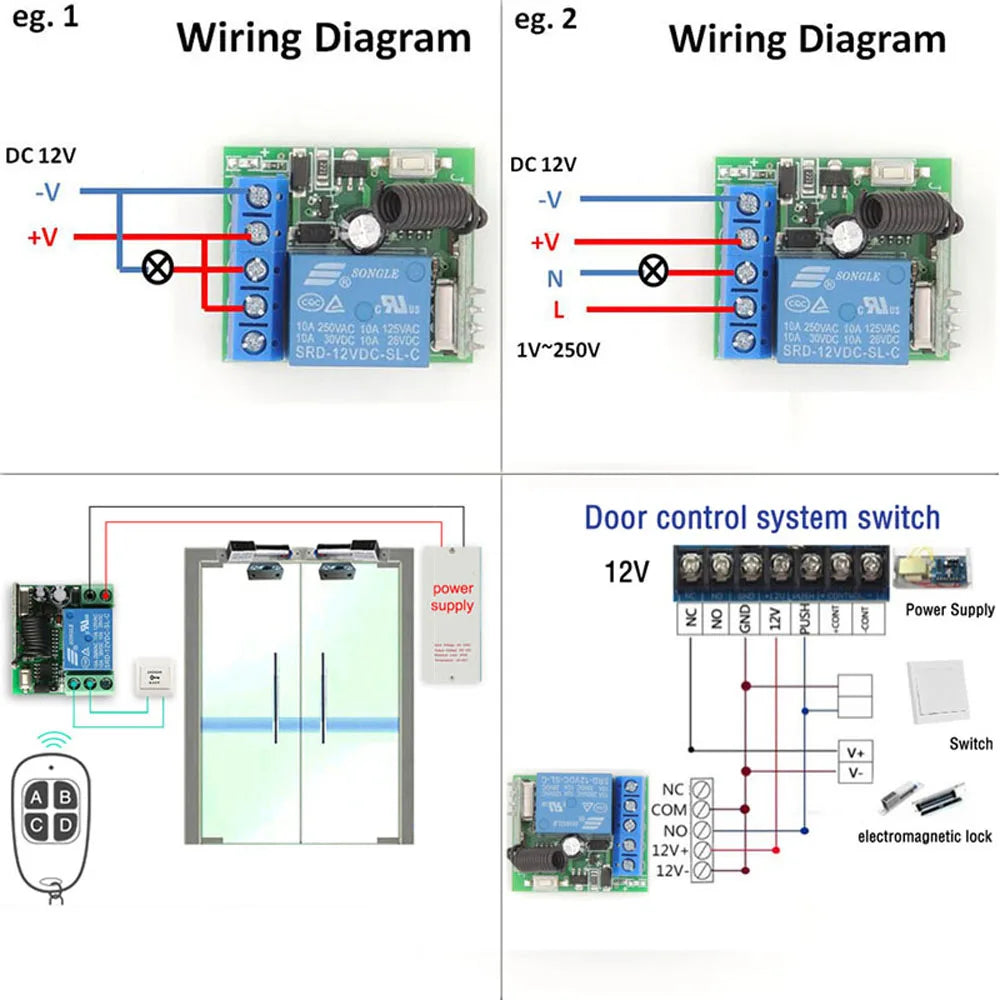

Wiring method: NC COM NO
Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

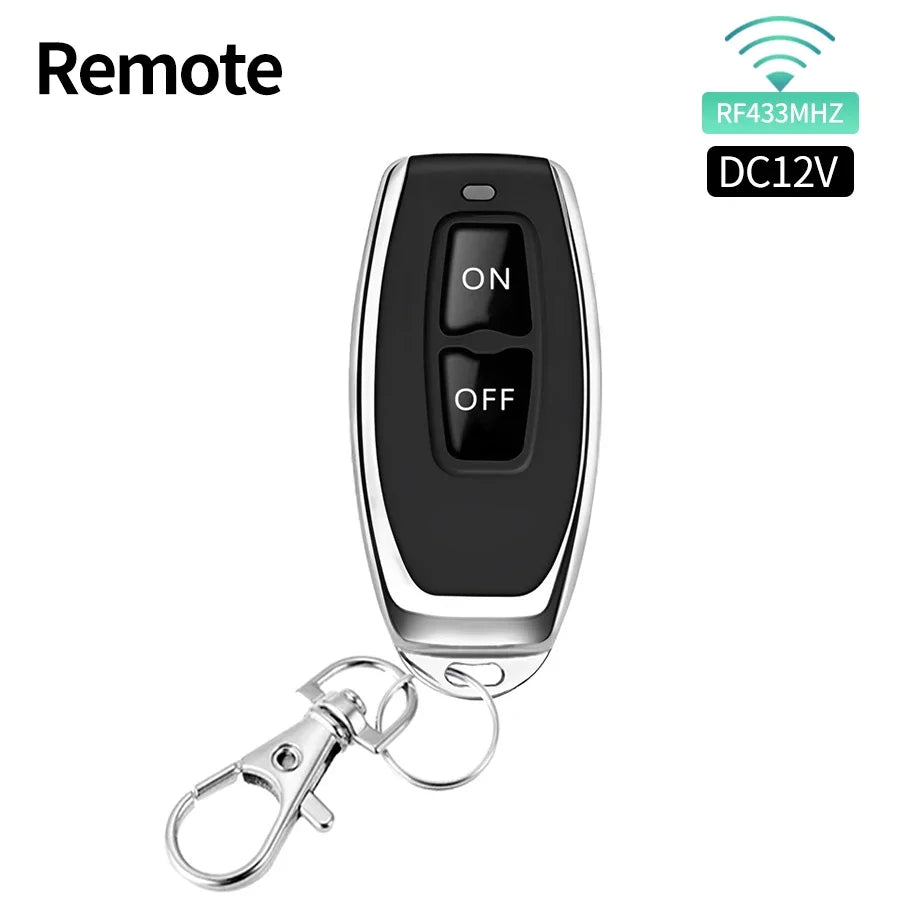

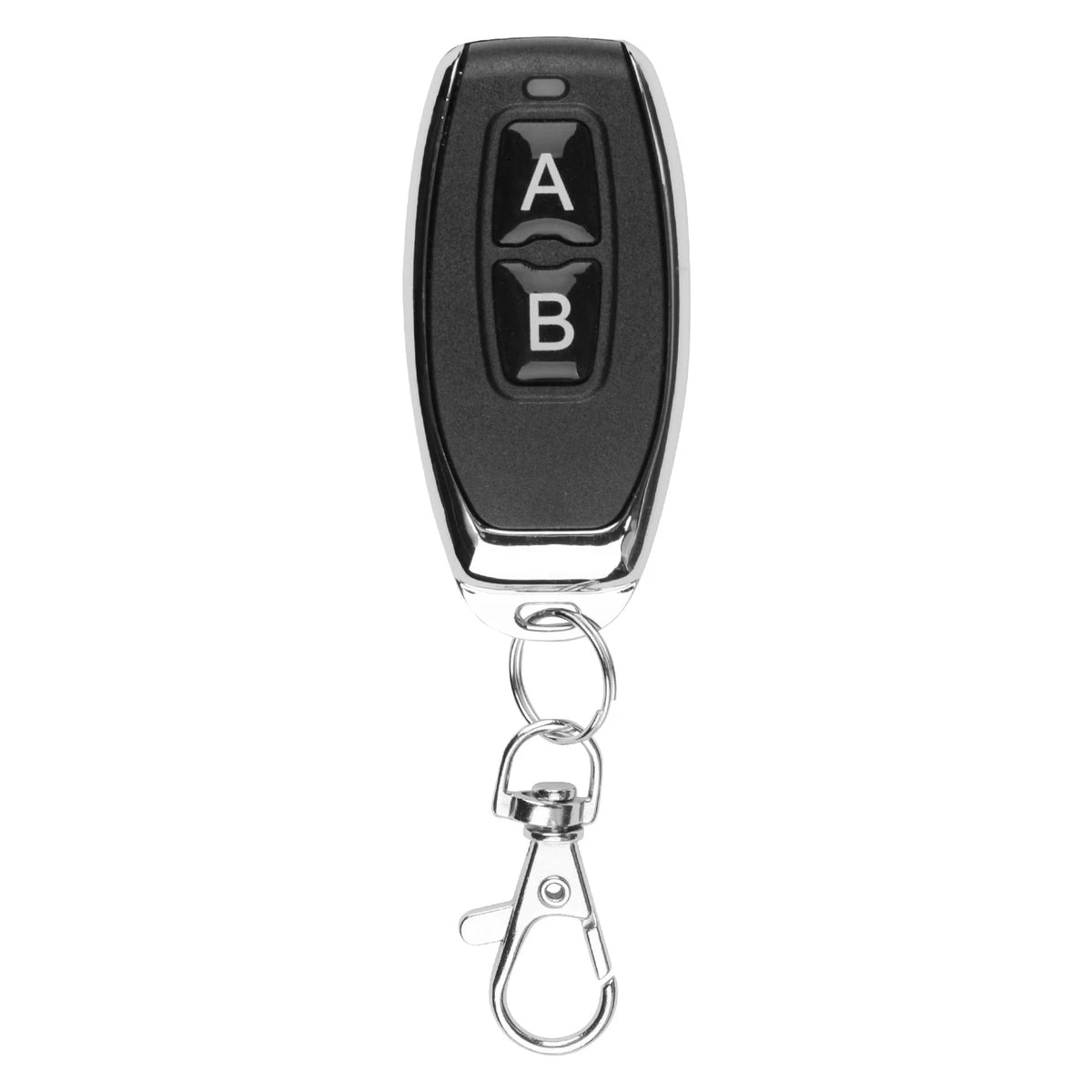

Remote Controller:
Operating RF Frequency: 433MHz.
Coded System: 1527 Learning Code.
Working Voltage: DC 3V.
Working Current: <25mA
Transmitting Power: 10mW.
Wireless Operating Distance: 50m(Free Space).
Transmission Rate: 50 ~ 60KHz.
Frequency Deviation: +0.2MHz or -0.2MHz.
Color: Black.
Please Note:
The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
